This Bolt-on kit is for use on the Accucraft Ruby, IDA, and Mimi Live Steam Engines.

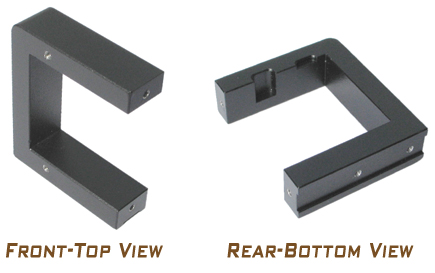

CNC machined billet aluminum bracket for mounting the two included micro servos.
Black anodized for professional quality integration and long lasting protection.

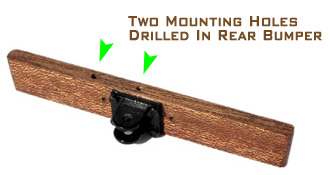

Bracket mounts to existing rear bumper of loco. Just drill two
holes in the wood and mount the bracket using included hardware.

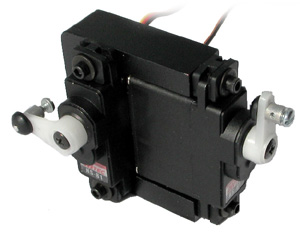

The included servos are shown mounted to the bracket with
the control horns and E/Z connectors in place.

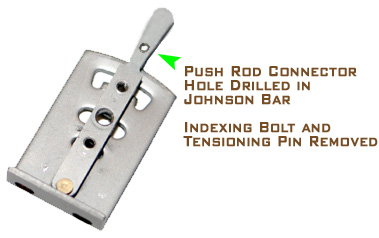

One hole drilled in the Johnson Bar assembly for the
included servo push rod hardware to be attached.

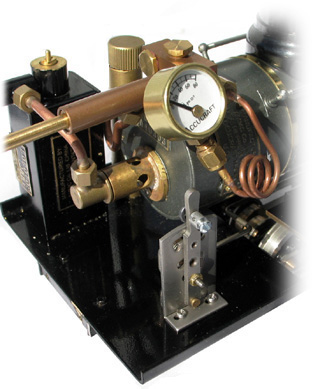

Johnson Bar assembly shown re-installed in the
cab with included E/Z connector in place.

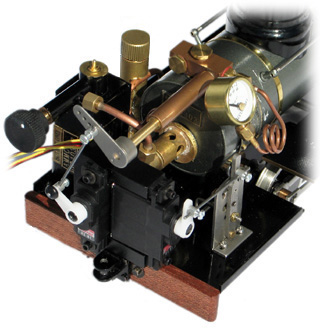

Servo Bracket and control linkages installed. Servo on left will
control the throttle and servo on right controls the Johnson Bar.

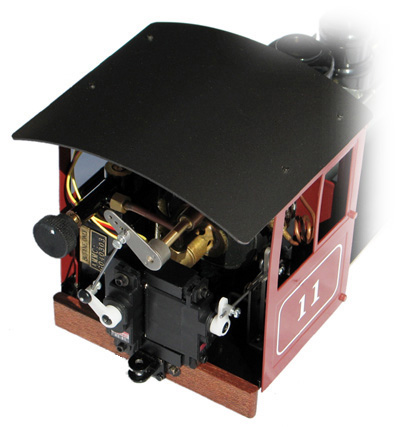

Completed installation with cab in place. Installations may vary
depending on which version of Ruby the kit is to be installed in. Some
knowledge of radio control may be required to fine tune the system.

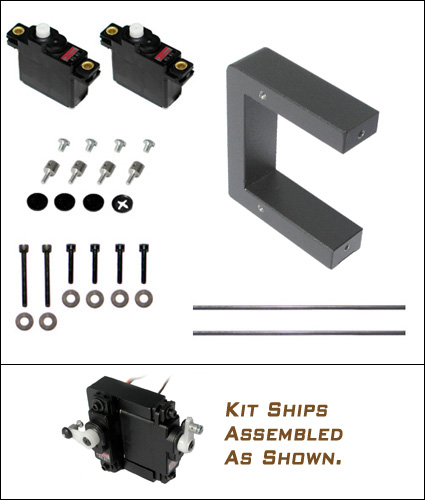

| Kit Contents: |
QTY.
|
|
Description
|
|
1
|
|
Billet Aluminum Black Anodized Servo Bracket |
|
2
|
|
Micro Servos with Universal Plug * |
|
4
|
|
Servo Mounting Screws and Washers |
|
2
|
|
Bracket Mounting Screws and Washers |
|
2
|
|
Metal Push Rods - 0.047" Dia. |
|
4
|
|
Mini E/Z Push Rod Connectors sets |
|
1
|
|
Instruction Manual |
* The Included Servos are Compatible With Spekrum, Futaba, JR, Hitec, and Airtronics-Z Radio Systems.
|
Ruby Live Steam Servo Installation Bracket Kit
|
$149
|
|
|
Note: Transmitter, Receiver, Battery Packs, Antenna and related
mounting hardware are not included. It is up to the installer to implement
their own radio equipment. Please practice safety and follow all instructions.
